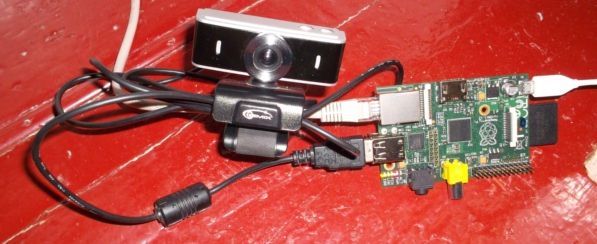

Photo registrator on Raspberry Pi
This weekend I decide to do something with my raspberry.
And this something now watching me :)

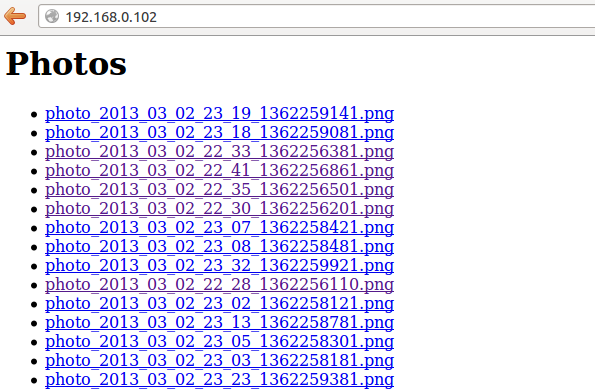

I decide, that it should work immediately, I have only give it power, no other actions. I use simple web server allows me to view saved photos in browser:

What I done to make it works:
1. Script for making photos on usb webcam
fswebcam utility was used. It can be installed using package manager.
#!/bin/sh
DEVICE=/dev/video0
PHOTOS_DIR=/home/cameraman/photos
[ -c $DEVICE ] && fswebcam --device $DEVICE --no-banner --png --save ${PHOTOS_DIR}/photo_`eval date +%Y_%m_%d_%H_%M_%s`.png
2. Web server
Using nginx.
nginx.conf:
user cameraman;
worker_processes 1;
pid /var/run/nginx.pid;
events {
worker_connections 100;
}
http {
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 10;
types_hash_max_size 2048;
include /etc/nginx/mime.types;
default_type application/octet-stream;
access_log /var/log/nginx/access.log;
error_log /var/log/nginx/error.log;
gzip off;
##
# Virtual Host Configs
##
include /etc/nginx/conf.d/*.conf;
include /etc/nginx/fastcgi_params;
server {
server_name cameraman.com;
listen 80;
location /photos {
root /home/cameraman;
autoindex off;
}
location / {
fastcgi_pass unix:/tmp/fastcgi.sock;
}
}
}
3. FastCGI server for files list page
#!/usr/bin/env python
# -*- coding: UTF-8 -*-
import sys, os, daemon
from flup.server.fcgi import WSGIServer
from settings import PHOTOS_DIR
SOCKET = '/tmp/fastcgi.sock'
def app(environ, start_response):
start_response('200 OK', [('Content-Type', 'text/html')])
yield '<h1>Photos</h1>'
yield '<ul>'
for root, dirnames, filenames in os.walk(PHOTOS_DIR):
for filename in filenames:
yield '<li><a href="/photos/{fn}" target="_blank">{fn}</a>'.format(fn=filename)
yield '</ul>'
if __name__ == '__main__':
"""
usage: ``python fastcgi.py`` to run server in console or
``python fastcgi.py daemonize`` to run server as daemon.
"""
if 'daemonize' in sys.argv:
with daemon.DaemonContext():
WSGIServer(app, bindAddress=SOCKET).run()
else:
WSGIServer(app, bindAddress=SOCKET).run()
System V script for the server:
#!/bin/bash
### BEGIN INIT INFO
# Provides: cameraman_server
# Required-Start: $all
# Required-Stop: $all
# Default-Start: 2 3 4 5
# Default-Stop: 0 1 6
# Short-Description: starts the cameraman fastcgi server
# Description: starts the cameraman fastcgi server
### END INIT INFO
DESC="FastCGI server for cameraman"
SCRIPT_NAME=fastcgi.py
SCRIPT_DIR=/home/cameraman/cameraman
start() {
cd $SCRIPT_DIR && source .env/bin/activate && python $SCRIPT_NAME daemonize
}
stop() {
kill -QUIT $(ps aux | grep $SCRIPT_NAME | awk "{print $2}")
}
case "$1" in
start)
echo -n "Starting $DESC: "
start
;;
stop)
echo -n "Stopping $DESC: "
stop
;;
restart)
echo -n "Restarting $DESC: "
stop
sleep 1
start
;;
*)
echo "Usage: $SCRIPTNAME {start|stop|restart}" >&2
exit 3
;;
esac
exit $?
4. Periadically remove old photos
#!/usr/bin/env python
# -*- coding: UTF-8 -*-
import os
import datetime
from settings import PHOTOS_DIR, REMOVE_AFTER_HOURS
def remove_old_photos():
print 'Removing old files ...'
min_time = datetime.datetime.now() - datetime.timedelta(hours=REMOVE_AFTER_HOURS)
for root, dirnames, filenames in os.walk(PHOTOS_DIR):
print root, dirnames, filenames
for filename in filenames:
try:
parts = filename.split('_')
time = datetime.datetime(
year=int(parts[1]),
month=int(parts[2]),
day=int(parts[3]),
hour=int(parts[4]),
minute=int(parts[5]))
if time < min_time:
print 'Removing %s' % filename
os.remove('%s/%s' % (PHOTOS_DIR, filename,))
except:
print '%s ommited' % filename
print 'Done'
if __name__ == '__main__':
remove_old_photos()
Code and instructions how to install scripts available at bitbucket.
Links:
- http://www.raspberrypi.org/
- http://docs.python.org/2/howto/webservers.html
- http://pc-freak.net/blog/linux-webcam-pictures-tty-console-terminal-pictures-plain-console-webcamera/
